With the increasing global demand for safe, natural, and preservative-free beverages, the need for efficient and reliable pasteurization technology has never been more critical. Consumers today expect fresh-tasting juice and functional drinks with extended shelf lives—all without compromising nutritional value or quality. This puts immense pressure on manufacturers to adopt advanced sterilization solutions that ensure microbial safety while maintaining the sensory characteristics of the final product.
Among the various technologies available, plate pasteurizers have gained significant recognition for their high efficiency and adaptability across a wide range of juice and beverage types. Known in the industry as a reliable beverage juice pasteurizer, the plate pasteurizer stands out by providing precise thermal treatment, energy savings, and compact design ideal for modern production facilities.
Fruit juices and plant-based beverages are highly perishable products prone to microbial spoilage, including yeasts, molds, and pathogenic bacteria. Regulatory bodies worldwide impose strict hygiene and safety standards on juice producers to protect public health and extend shelf life while reducing the need for chemical preservatives.
To meet these safety requirements, thermal processing—especially pasteurization—remains the most widely used method. It involves heating the beverage to a specific temperature for a defined period to inactivate pathogens and spoilage organisms without compromising flavor or nutrition. Pasteurization is particularly vital in products like fresh NFC (Not From Concentrate) juices, smoothies, and low-acid fruit blends, where microbial stability is difficult to achieve through pH control alone.
Pasteurization technology, named after Louis Pasteur, has become a gold standard in juice and beverage sterilization. Its consistent results and regulatory acceptance have made it an integral part of food safety protocols across the globe. Among the different pasteurization methods, plate pasteurizers are widely recognized for their superior energy efficiency, flexibility, and ability to handle varying viscosity levels in beverages.
The beverage manufacturing industry prefers plate pasteurizers due to their ability to quickly achieve target temperatures and maintain them across large volumes of liquid. This ensures uniform treatment and minimizes the risk of under-processing or over-processing, both of which can affect safety or flavor quality.

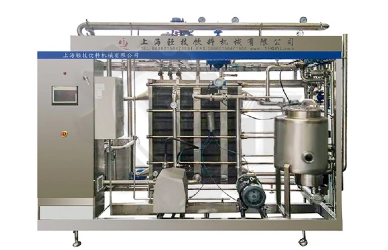

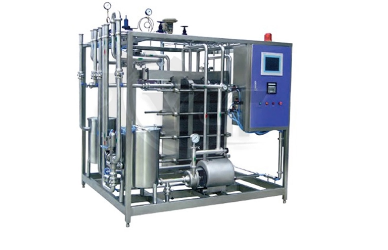

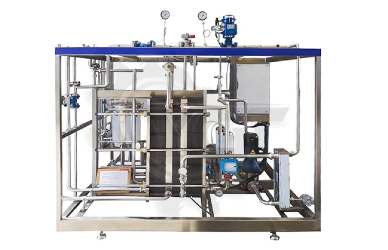

At the heart of a plate pasteurizer lies a series of stainless-steel plates arranged in a frame to create alternating channels for hot and cold fluids. This plate heat exchanger design enables high-efficiency thermal transfer between the product and heating/cooling media. Each plate is equipped with specially designed corrugations to create turbulence in the liquid flow, maximizing surface area contact and heat exchange performance.
The thinness of the plates and the proximity of the channels allow for rapid heating and cooling cycles, making the plate pasteurizer ideal for sensitive beverages that require precise thermal control.
In pasteurization, both temperature and time are critical parameters. The plate pasteurizer ensures accurate control over these variables by using advanced PLC systems and sensors. Typical pasteurization temperatures for juice range from 72°C to 95°C, depending on the acidity and microbial load, with holding times of 15 to 30 seconds.
The holding section in the pasteurizer keeps the juice at the target temperature long enough to eliminate harmful microbes while preserving vitamins, color, and flavor. After pasteurization, the product is quickly cooled using the same plate structure, minimizing thermal stress and maintaining product integrity.
Modern plate pasteurizers are fully automated, featuring digital control interfaces for temperature regulation, flow rate adjustment, and fault detection. Energy efficiency is another key advantage. The system recycles thermal energy through regenerative heating—using the outgoing hot juice to preheat the incoming cold juice—resulting in significant energy savings.
Such intelligent control systems also reduce operator intervention and minimize the risk of human error, leading to more consistent quality and lower operational costs.
Compared to traditional tubular or batch pasteurizers, plate pasteurizers offer much higher thermal efficiency. The thin, corrugated plates ensure maximum heat transfer with minimum thermal gradient loss. This not only shortens processing times but also helps preserve nutrients and flavor compounds that are sensitive to prolonged heat exposure.
The regenerative heat exchange feature allows up to 90% of the energy to be recovered during the pasteurization cycle, significantly lowering utility consumption. Over time, this translates into reduced carbon footprint and enhanced environmental sustainability for juice manufacturers.
One of the standout features of plate pasteurizers is their compact design, which saves valuable floor space in production facilities. The modular structure allows for easy assembly, disassembly, and expansion as needed. Maintenance is also simplified—gaskets and plates can be replaced individually without requiring complete system shutdown.
Additionally, integrated CIP (Clean-In-Place) systems ensure sanitary operation by automatically cleaning internal surfaces between product runs.
NFC juices are gaining popularity due to their minimal processing and fresh taste profile. However, they pose challenges in microbial stability due to their low acidity and short shelf life. Plate pasteurizers provide the precise thermal treatment necessary to extend shelf life without degrading the fresh characteristics of the juice.
In the case of reconstituted juice made from concentrate, uniform pasteurization ensures consistency in quality and taste across different batches. Plate pasteurizers also allow for seamless switching between different juice types, improving production flexibility.
Low-acid beverages such as carrot, mango, banana, and leafy green blends are particularly susceptible to Clostridium botulinum and other dangerous pathogens. These products require more stringent thermal processing, which can compromise texture and taste if not carefully controlled.
Plate pasteurizers are ideal for these applications, as they offer high-precision temperature control and the ability to fine-tune processing parameters for each product type. This results in safer beverages with preserved natural qualities.
Probiotic-Enriched Dairy-Alternative Juice Blends
Plant-based beverages that combine almond, oat, or soy bases with fruit purées are rapidly expanding in the functional-drink segment. Because they carry both protein (from the plant “milk”) and fermentable sugars (from the fruit), these blends offer an excellent growth medium for spoilage organisms and heat-resistant spores. At the same time, manufacturers often add live probiotic cultures after heat treatment, so the thermal step must be tight enough to guarantee safety yet gentle enough to avoid excessive protein denaturation and Maillard browning—both of which can produce grainy textures or off-colors.
A plate pasteurizer is ideal for this balancing act:
Precisely profiled temperature zones—short, high-temperature holds (e.g., 90 – 95 °C for 15–30 s) achieve the 5-log pathogen reduction mandated for low-acid protein drinks, while rapid regenerative cooling protects flavor and plant-protein integrity.
Low residence time and uniform flow paths minimize shear and foaming, reducing protein aggregation that can otherwise settle during shelf life.
Because most lines also run pure fruit juices, the sanitary design of modern Beverage Juice pasteurizer plate packs allows CIP cycles to switch from allergen-containing (soy, almond) to allergen-free products in under an hour, maximizing uptime.
Integration with inline dosing skids lets producers inject temperature-sensitive probiotics post-pasteurization—directly after the final cooling section—so viability remains high through distribution.
The result is a shelf-stable, ready-to-drink plant smoothie that retains a clean, fresh taste, smooth mouthfeel, and clinically relevant probiotic counts, all while meeting the stringent safety requirements for low-acid, protein-rich beverages.
As the juice and beverage market continues to evolve with a focus on clean labels, extended shelf life, and sustainable production, plate pasteurizers have emerged as a crucial tool in achieving these goals. Their combination of thermal efficiency, energy savings, compact footprint, and application versatility makes them indispensable in any beverage manufacturing setup.
For businesses seeking to upgrade their juice processing lines or enter the market with high-quality, safe products, investing in a high-performance plate pasteurizer is a strategic decision.
To learn more about how to implement cutting-edge beverage pasteurization SHANGHAI QINGJI BEVERAGE MACHINERY CO., LTD. systems tailored to your production needs, we highly recommend consulting with As a trusted manufacturer of beverage processing equipment, Qingji offers customized plate pasteurizer solutions that meet global safety standards while ensuring optimal efficiency and cost-effectiveness.
