In the rapidly evolving food and beverage industry, ensuring product safety while maintaining flavor, nutritional value, and shelf life is a non-negotiable priority. Among various technologies available, plate pasteurizers have become an indispensable component of modern food processing lines. Their ability to deliver consistent thermal treatment, optimize energy use, and support sanitary standards makes them the preferred choice for manufacturers worldwide.
With growing consumer demand for safe yet minimally processed products, the industry is shifting toward automated, efficient, and compact systems. In this context, the plate pasteurizer, powered by plate heat exchangers, stands out as an ideal solution. This article explores the fundamental principles, operational workflow, and performance advantages of plate pasteurizers, while introducing SHANGHAI QINGJI BEVERAGE MACHINERY CO., LTD—a leading innovator in the field.
The concept of pasteurization—named after Louis Pasteur—is rooted in controlled heat treatment to eliminate harmful microorganisms without compromising product quality. Modern plate pasteurizers have redefined this process with advanced engineering, compact design, and superior energy efficiency.
The key component enabling this efficiency is the plate heat exchanger (PHE), a device that allows heat to transfer between two fluids with minimal energy loss and maximum speed. Plate pasteurizers combine this principle with precise temperature control, sanitary design, and integration with other processing components like pumps, valves, and CIP systems.

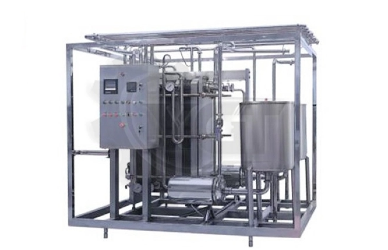

A plate pasteurizer is a continuous-flow thermal processing system designed to heat liquid food products to a specific temperature for a defined period, followed by rapid cooling. Its primary objective is to deactivate pathogenic and spoilage organisms while preserving the product’s quality attributes.
Plate Heat Exchanger (PHE): The heart of the system, constructed from stainless steel plates arranged to allow heat exchange between hot and cold fluids.
Balance Tank: Maintains a consistent product flow and reduces the risk of air intake.
Hot Water Circuit: Heats the product to the target pasteurization temperature.
Holding Tube: Ensures that the product remains at the required temperature for the necessary duration.
Cooling Section: Brings the product to the desired outlet temperature, usually through regenerative cooling.
Control System (PLC): Manages temperature, flow rate, and alarms for deviations.
CIP System (optional): Enables automated cleaning without dismantling the equipment.
The plate heat exchanger is vital for the efficiency and performance of a plate pasteurizer. It consists of thin, corrugated metal plates that create parallel flow channels for the product and heating/cooling media. These plates are assembled in a frame and sealed with gaskets or welded seams.
Heat Recovery: Uses the outgoing hot product to preheat the incoming cold product, significantly reducing energy consumption while improving overall thermal efficiency and sustainability of the plate pasteurizer system.
Temperature Uniformity:Ensures consistent heat distribution across all product flow paths, preventing cold spots or overheating, thereby guaranteeing effective and reliable pasteurization in the plate pasteurizer system.
Compact Design: Offers a high surface area for efficient heat transfer within a small footprint, making the plate heat exchanger ideal for space-constrained processing environments and enhancing the overall efficiency of the plate pasteurizer system.
Ease of Maintenance: The modular structure of the plate heat exchanger allows for easy disassembly, enabling quick cleaning, inspection, and gasket replacement, ensuring minimal downtime in the plate pasteurizer system.
Understanding how a plate pasteurizer operates provides insight into its advantages in modern processing plants. The process typically unfolds in three main stages:
In this phase, the cold product enters the system and passes through the regenerative section of the plate heat exchanger, where it is preheated by the hot, pasteurized product exiting the system. This regenerative process can recover up to 90% of the heat energy, making it extremely energy-efficient.
Once preheated, the product is directed into the hot water heating section, where it reaches the required pasteurization temperature—typically between 72°C and 95°C, depending on the product. The heated product then flows through a holding tube, which ensures it remains at this temperature for the necessary time (usually 15–30 seconds) to achieve microbial inactivation.
The holding time and temperature are carefully controlled via a PLC system to comply with regulatory standards such as FDA, HACCP, or CE guidelines.
After heat treatment, the product enters the cooling zone. Here, the pasteurized liquid is first cooled by regenerating heat to the incoming product, then further cooled by chilled water or glycol to reach the desired outlet temperature.
Maintaining a higher pressure in the pasteurized side prevents the risk of cross-contamination. Some systems also incorporate double seals or leak detection zones in the heat exchanger for added safety.
The performance of a plate pasteurizer depends heavily on a few critical parameters:
Parameter | Impact |
Flow Rate (L/h) | Determines capacity and throughput |
Holding Time | Influences microbial kill rate |
Plate Design and Corrugation | Affects turbulence and heat transfer coefficient |
Temperature Control Accuracy | Ensures consistent pasteurization and avoids product degradation |
Material Quality (e.g., SS304, SS316) | Critical for corrosion resistance and food safety |
Precise control of these parameters not only ensures compliance with safety standards but also maintains organoleptic properties such as taste, texture, and aroma—critical for consumer satisfaction.
While tubular pasteurizers and shell-and-tube systems still have their place in viscous or particulate-laden products, plate pasteurizers offer notable advantages:
Feature | Plate Pasteurizer | Tubular Pasteurizer |
Heat Transfer Efficiency | High | Moderate |
Energy Recovery | Excellent | Good |
Cleaning & Maintenance | Easier | More Complex |
Footprint | Compact | Larger |
Cost of Operation | Lower | Higher |
Plate systems are ideal for low-to-medium viscosity liquids like milk, juices, and soy beverages, providing a hygienic and compact solution with minimal energy use.
Thanks to its adaptable design and modular integration, the plate pasteurizer finds applications in a wide variety of food and beverage sectors:
Dairy Industry: Milk, cream, and yogurt drinks are pasteurized to prevent spoilage and ensure safety.
Juice and Beverage Production: Orange juice, apple juice, tea drinks, and plant-based beverages benefit from heat treatment that preserves freshness.
Condiments and Sauces: Products like vinegar, soy sauce, and dressings require gentle pasteurization to maintain flavor profiles.
Fruit Purees and Jams: These require exacting thermal control to avoid caramelization while ensuring shelf stability.
Brewing and Fermentation Products: Beer, kombucha, and other fermented beverages are often flash pasteurized using plate systems.
Each application demands specific configurations—something that SHANGHAI QINGJI BEVERAGE MACHINERY CO., LTD excels at customizing.
In a landscape where foodborne illnesses can lead to massive product recalls and reputational damage, the plate pasteurizer emerges as a frontline solution. By combining plate heat exchanger technology with intelligent process control, manufacturers can ensure safe, efficient, and energy-conscious production.
For companies seeking a reliable, innovative, and professional partner in thermal processing solutions, we highly recommend SHANGHAI QINGJI BEVERAGE MACHINERY CO., LTD. With years of experience, state-of-the-art manufacturing, and a commitment to quality, QINGJI offers tailor-made pasteurization systems for diverse industries. Whether you're modernizing an existing line or launching a new beverage product, QINGJI can provide the right solution with expert support from design to after-sales service.
