Product Description

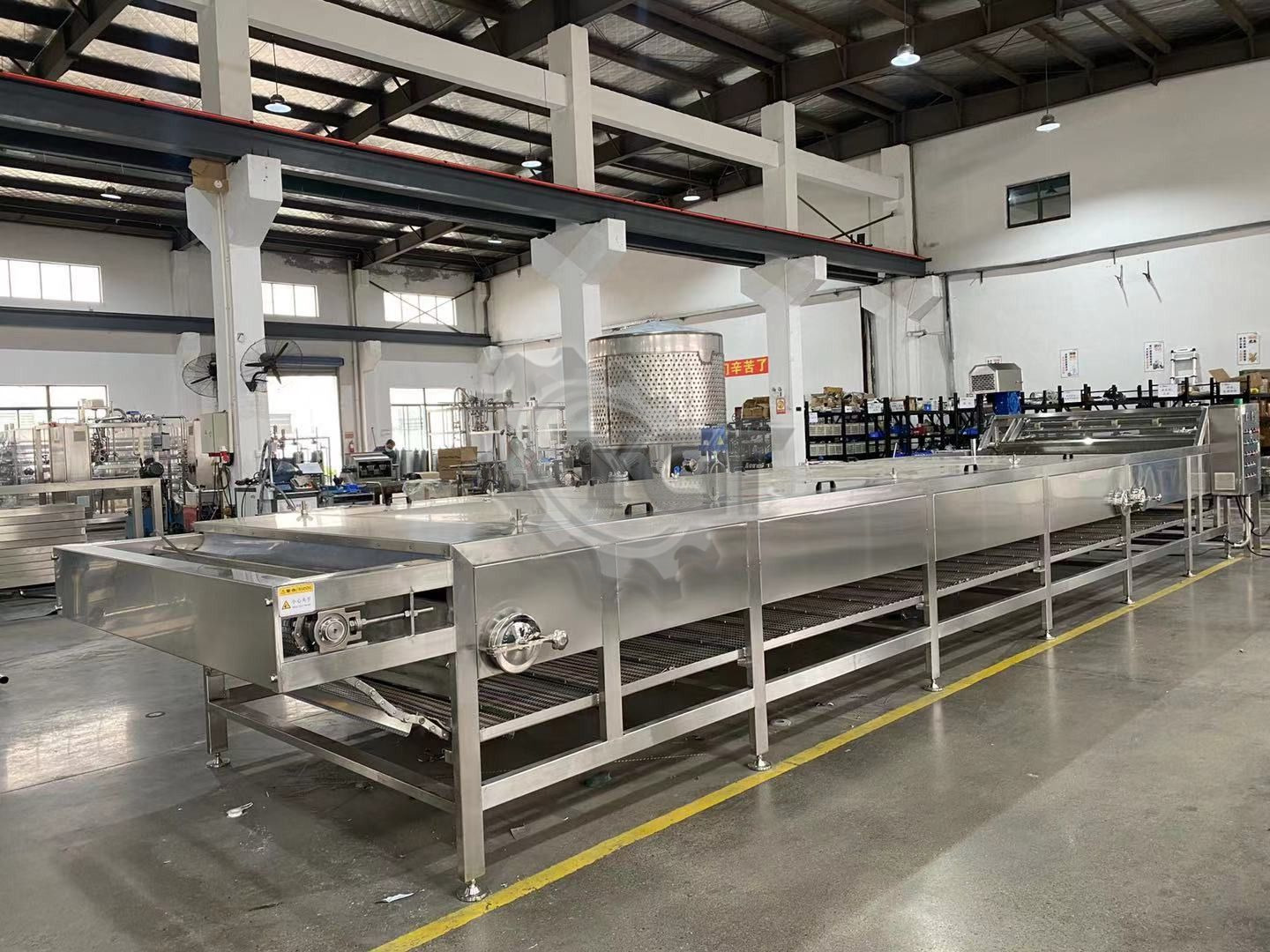

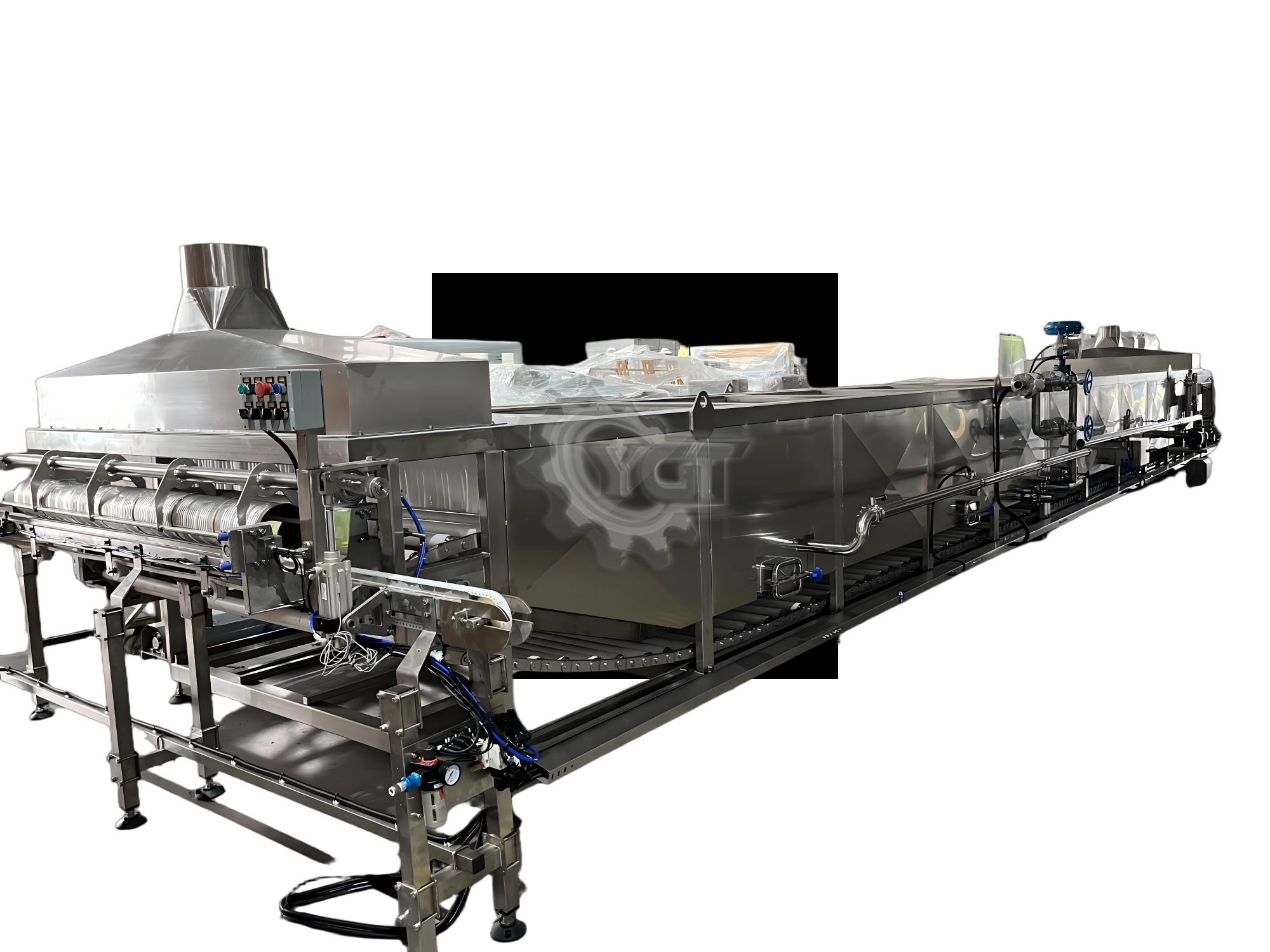

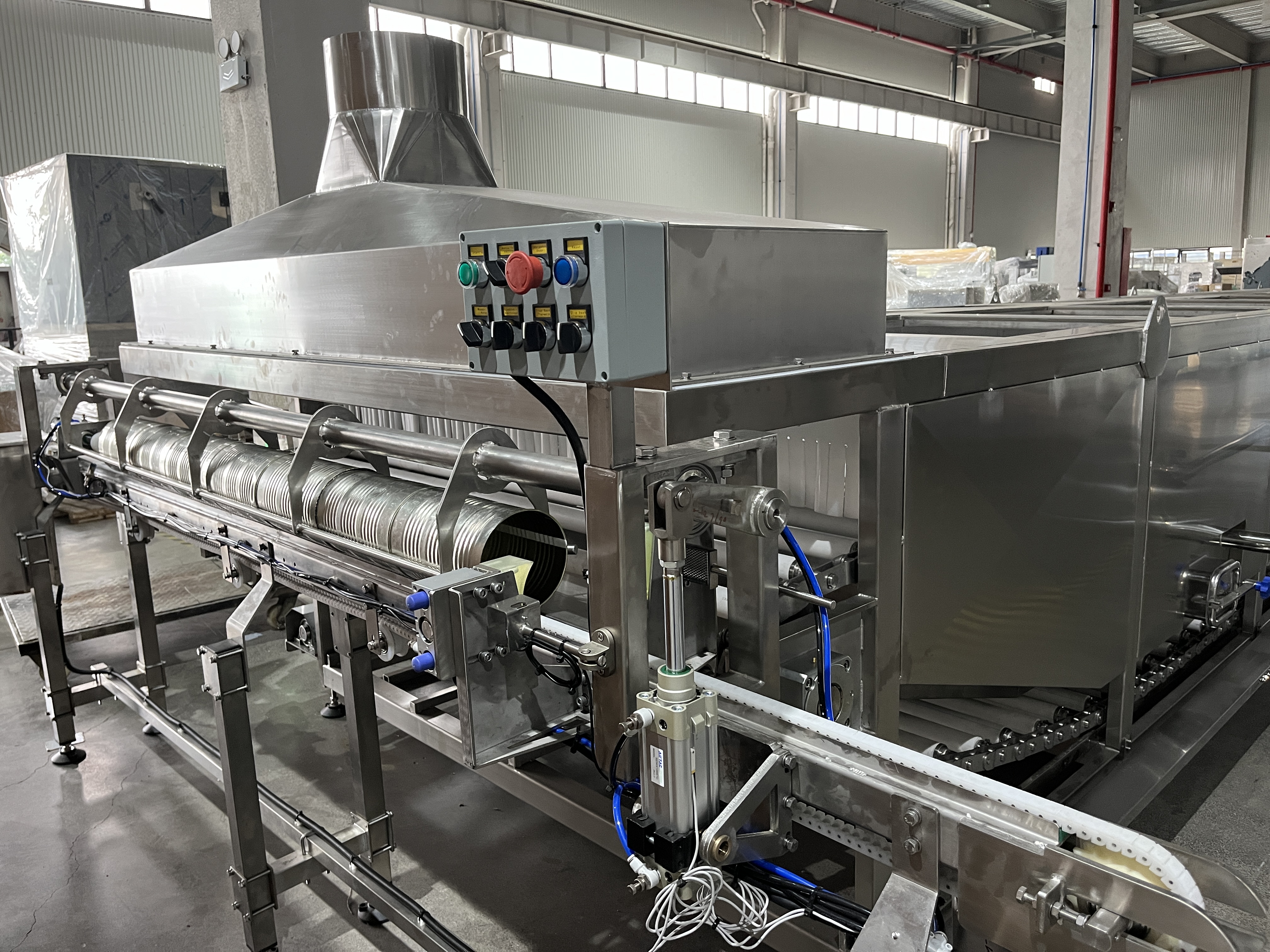

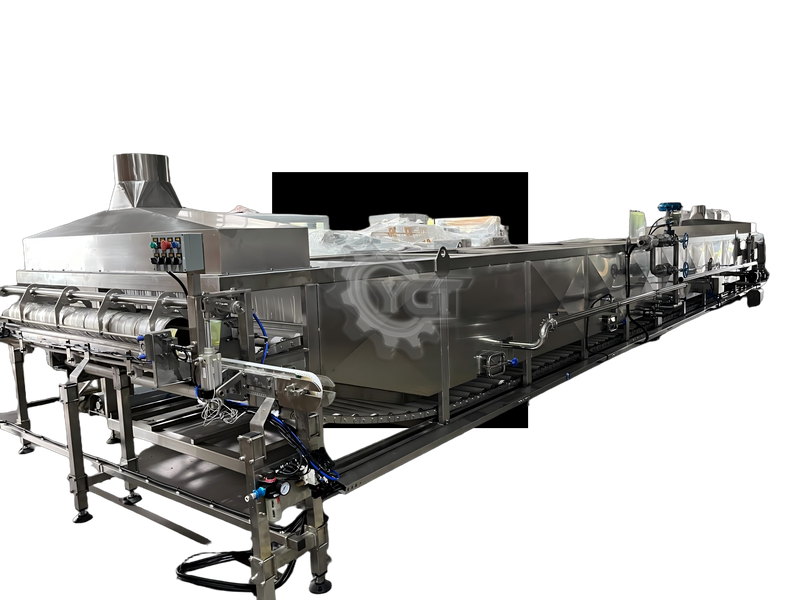

The Water Bath Sterilizer is a continuous pasteurization and sterilization machine designed for packaged liquid or semi-liquid food products. By immersing products in heated circulating water, it ensures uniform thermal treatment, preserves product texture and nutrition, and guarantees food safety. Ideal for flexible packaging such as pouches, bottles, and trays.
 |  |
Configuration：
✅ Uniform Heating – Complete water immersion ensures even temperature distribution, avoiding thermal spots.
✅ Wide Compatibility – Suitable for soft pouches, plastic/glass bottles, BIB, and trays.
✅ Precise Temperature Control – PID system for accurate heating regulation.
✅ Energy Efficient – Equipped with heat recovery system and insulation layers.
✅ Product Protection – Gentle handling system to prevent package damage.
✅ Customizable Design – Adjustable sterilization time and temperature according to product type.
✅ Integrated CIP System – Automatic cleaning system reduces manual labor and contamination risk.
✅ High Output – Supports continuous sterilization for large-scale production.
Suggested: Illustration of machine sections + feature icons
| Feature | Description |
|---|---|
| Circulating Water System | Ensures even heat distribution and uniform sterilization |
| Precise Temperature Control | PID temperature control for stable heat treatment |
| Variable Speed Conveyor | Adjustable speed for flexible sterilization time |
| Automatic CIP Cleaning | Built-in cleaning-in-place system for hygiene and labor savings |
| Custom Design Available | Machine dimensions and process parameters tailored to product requirements |
Technical parameter:
Recommended: insert technical diagram or sterilization flowchart
| Item | Specification |
|---|---|
| Sterilization Temperature | 65°C – 98°C |
| Sterilization Time | 10 – 60 minutes (adjustable) |
| Packaging Compatibility | Pouches, bottles, trays (100ml – 5L) |
| Material | SUS304 / SUS316 Stainless Steel |

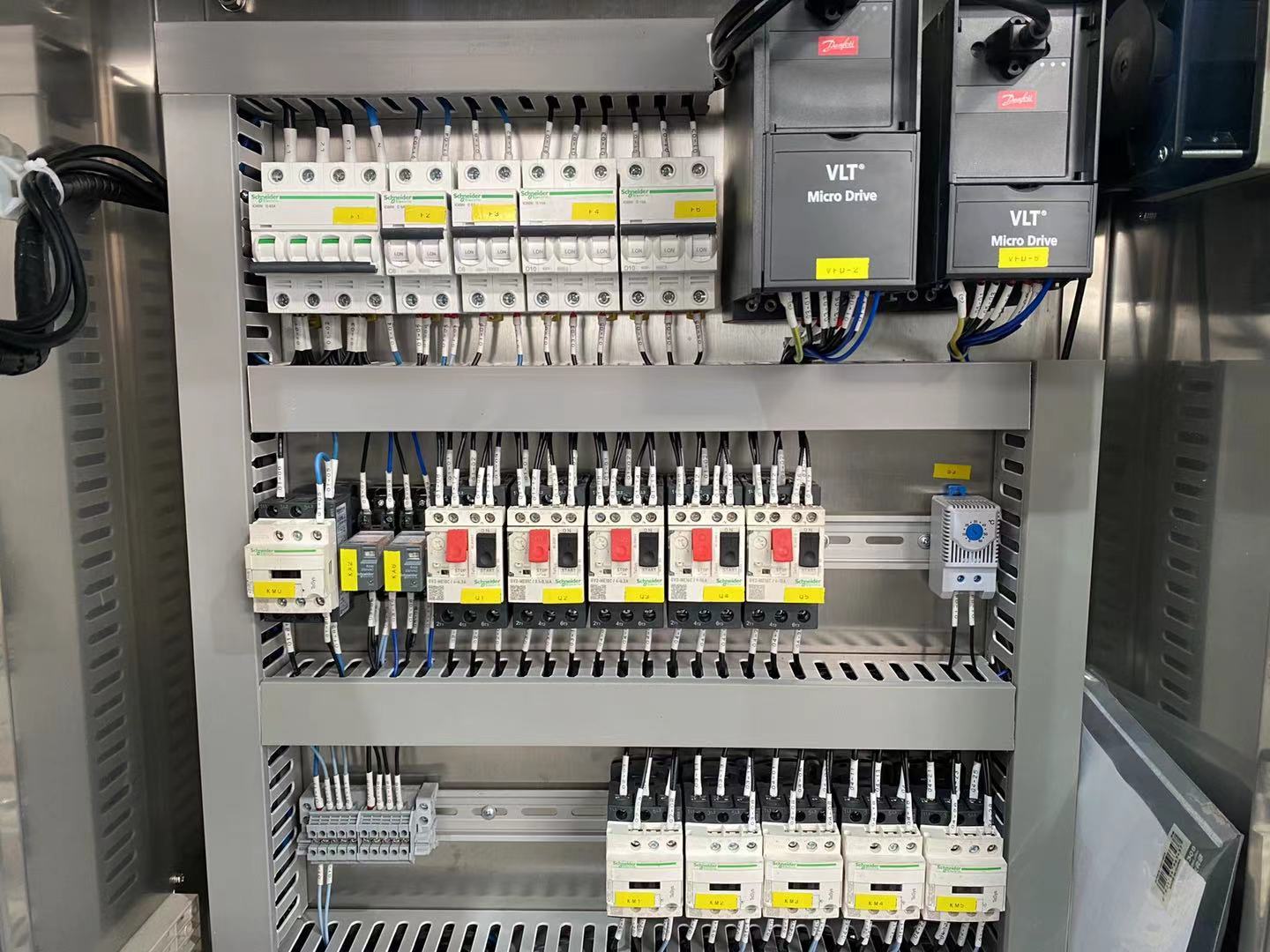

| Control System | PLC + HMI Touchscreen (with temperature recording system) |
| Heating Method | Steam or Electric |
| Capacity Range | 500 – 5000 kg/h (customizable) |
| Conveyor Speed | Frequency-controlled, adjustable |
Application：
This sterilizer is widely used in:
Juices & beverages (fruit juice, tea, coconut water)
Sauces & pastes (tomato paste, chili sauce, ketchup)
Dairy products (yogurt, flavored milk, cream)
Plant-based products (soymilk, almond milk, oat milk)
Ready-to-eat meals (retort pouches, meal kits)
Medical nutrition & baby food (sensitive sterilization needs)
Service:
Insert service workflow icons: Inquiry → Design → Production → Installation → Support
Customization Support – Tailor-made designs for specific capacity, packaging types, and layout.
Installation & Commissioning – On-site setup, operator training, and trial run.
After-Sales Support – 12-24 months warranty, fast spare parts delivery, online technical support.
CIP/SIP Integration – Optional full cleaning integration with upstream/downstream lines.
Export Ready – CE certification, international voltage support, multi-language interface available.
