Product Description

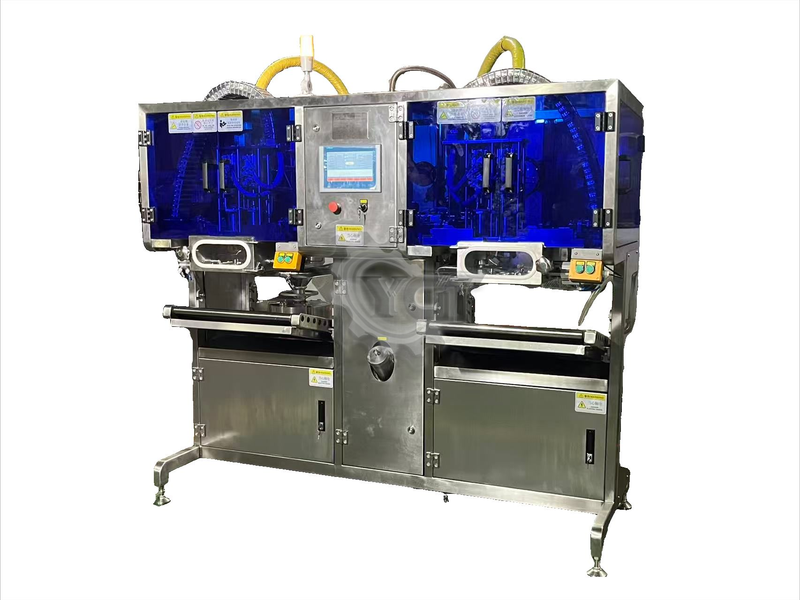

The BIB Double-Head Filling Machine is an automated filling equipment specially developed for 1-30L bag-in-box (BIB) packaging. Adopting a double-station synchronous operation design, it is compatible with the filling of fluid and viscous materials. It integrates the whole process functions of automatic cap removal, vacuum deoxidation, precise metering, aseptic filling and automatic capping. Combined with mature pneumatic and intelligent control systems, it adapts to standardized production in food, daily chemical, chemical and other industries. It balances mass production efficiency and high-precision filling requirements, supports semi-automatic and fully automatic operation modes, and is suitable for workshops with different production capacities.
High-efficiency Double-station Operation: Double-head independent and synchronous filling doubles the production capacity compared with single-head equipment. The two stations work without mutual interference, and can complete the filling of two batches of materials with the same specifications at the same time, greatly improving the production rhythm and meeting the needs of medium and large-scale mass production.
Wide Compatibility: It is not affected by the softness, hardness and material difference of the bag body. It is suitable for various 1-30L BIB sterile bags and standard bag-in-box bags, and compatible with fluid and viscous materials such as water, fruit juice, sauces, dairy products and chemical solutions.
Stable Filling Precision: Equipped with an intelligent metering control system, optional volumetric and weighing metering methods. The filling error is controlled within ±0.5% to eliminate material loss and ensure consistent capacity of each bag.
Sterile and Clean Production: Equipped with steam sterilization and vacuum deoxidation modules, it can effectively remove air and bacteria in the bag. The fully enclosed filling process avoids secondary material pollution and meets the aseptic production standards for food and beverages.
Integrated Automatic Process: After manual bag positioning, the equipment automatically completes cap removal, vacuum pumping, filling and capping without manual intervention, reducing labor costs and operational errors.
Easy Operation and Maintenance: Equipped with a touch screen intelligent control system, parameters can be adjusted with one click and support batch parameter memory. The modular structure design facilitates disassembly, cleaning and maintenance with low failure rate and low later maintenance cost.
Power-on Self-inspection: Turn on the power and air source, start the equipment. The system conducts automatic self-inspection to check the normal state of air pressure, circuit and sensors, and clean up residual materials in the equipment.
Parameter Setting: Set the filling volume, filling speed and sterilization time through the touch screen, select automatic/manual operation mode, and save the parameters.
Manual Bag Loading: Fix the BIB sterile bag accurately on the double-station clamp to ensure the bag mouth buckle is closely fitted and positioned stably.
Automatic Sterilization and Vacuuming: Start the operation switch. The equipment automatically completes steam sterilization of the bag mouth and extracts air from the bag synchronously to avoid oxidation and bacterial pollution.
Precise Filling: The manipulator automatically removes the cap, and the system performs quantitative filling according to the set parameters. The double stations operate independently without mutual interference.
Automatic Capping and Resetting: After filling, the equipment automatically caps and seals, resets the station, and completes a single filling process.
Bag Unloading and Packaging: The finished bag is automatically conveyed and discharged, manually taken for packaging, and the cycle operation is carried out.
